Introduction to Cisco ACI

Introduction

Cisco Application Centric Infrastructure (ACI) is a transformative architecture for data centers that optimizes the network infrastructure and its operations. ACI aims to provide a highly flexible and automated network environment designed to accelerate application deployment and reduce complexity in modern data centers. With the increasing demand for cloud computing, big data analytics, and the Internet of Things (IoT), traditional networking approaches can struggle to keep up. ACI addresses these challenges by implementing an application-centric policy model. This approach omits the legacy approach to manually configure every single parameter.

Cisco Application Centric Infrastructure (ACI)

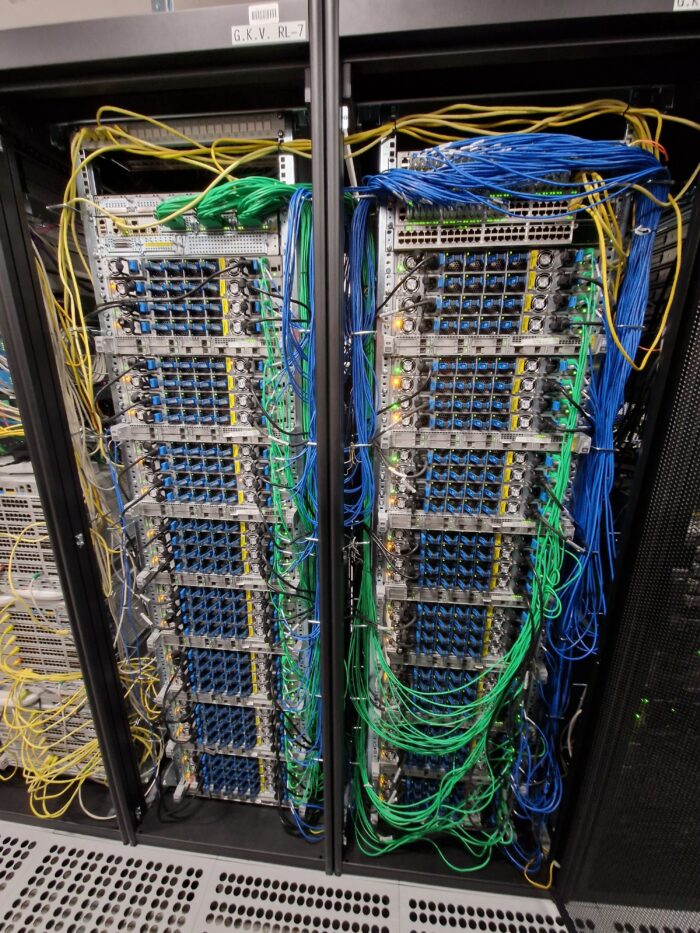

The foundation of Cisco ACI are the Nexus 9000 series switches, which provide the hardware basis for ACI deployments. These switches offer a high-performance, low-latency infrastructure that supports both traditional and next-generation data center requirements. The Cisco ACI solution is designed to be programmable and to support the open APIs and automation tools. Furthermore, ACI is engineered to scale from small to extremely large deployments in an efficient way, with high density and power efficiency to reduce operational costs.

The central management and policy automation point of ACI architecture is the Application Policy Infrastructure Controller (APIC). It is responsible for Policy Management, which defines and manages application policies across the network. It also takes care of Network Automation, automating network provisioning and configuration. Finally, it provides Health Monitoring with a comprehensive view of a network’s health and performance.

ACI uses logical constructs to represent network elements, abstracting the underlying physical network. This means that the logical object extends across the switches. The main constructs include Tenans, VRFs, Bridge Domains (BD), Endpoint Groups (EPGs), Endpoints, and Contracts. Tenants are logical containers that represent an organization, application, or environment within the ACI fabric. While VRFs represent the possibility of reusing the same IP address space, and VRF overlay-1 carries multitenant routing information over the backbone, BDs are the logical flooding entities, usually on non-border leaves (non-BLEAFs) acting as the routers or switches. BDs will also mark the internal IP subnets to be advertised through the border leaves (BLEAF). Endpoints are devices or applications connected to the network, grouped in EPGs as the logical groupings of endpoints that require similar network policies. Internal to the fabric EPGs identified with VLANs, external to the fabric EPGs are created as L3OUT entities and identified with IP subnet filters. L3OUTs will receive the external routes and redistribute them into the fabric. Between the EPGs, it is possible to establish Contracts that define communication policies and specify which traffic is allowed.

Benefits of Cisco ACI

In the Application-Centric approach, ACI focuses on applications’ requirements, rather than the network itself. This approach defines network policies based on application needs, ensuring optimal performance and security.

ACI significantly reduces the complexity of network management through Automation and Simplification. Policies can be applied uniformly across the network, reducing the need for manual configuration and minimizing errors.

With its micro-segmentation capabilities, ACI isolates applications and services at a granular level, providing robust Security across the network. Policies are applied to individual endpoints or groups, protecting them against internal and external threats.

ACI supports Scalability from small data centers to large, multi-site environments. Its flexible architecture allows for easy adaptation to changing business needs, ensuring the network can grow and evolve as required.

ACI provides comprehensive Visibility into network operations through the APIC, allowing administrators to monitor the network’s health and performance in real-time. This visibility helps identify and resolve issues, therefore maintaining performance.

How Cisco ACI Works

At the heart of ACI is a policy-driven approach to networking. Instead of manually configuring each device, administrators define policies that specify how applications and services should communicate. These policies are then automatically applied across the network nodes.

The APIC serves as the central point for policy definition and management. Administrators can use APIC’s intuitive interface to create policies that are enforced consistently across the ACI fabric. This centralization simplifies network management and ensures compliance with organizational standards.

Cisco ACI seamlessly integrates with virtual environments, supporting a wide range of hypervisors and orchestration platforms. This integration allows for consistent policy application across both physical and virtual resources, ensuring a unified approach to network management.

ACI’s security model includes multiple layers of protection, starting with network segmentation into secure zones using EPGs. Contracts define the permitted interactions between these zones, ensuring only authorized traffic can flow between them. Additional security features, such as distributed firewalls and intrusion detection, further enhance the network’s defense capabilities.

Use Cases

  • Data Center Consolidation: ACI simplifies the consolidation of multiple data centers into a unified infrastructure. Its policy-driven model reduces the complexity of integrating disparate systems, enabling faster and more efficient data center consolidation.
  • Cloud Integration: ACI’s flexible architecture supports hybrid cloud environments, enabling seamless integration with cloud services. This capability allows organizations to extend their on-premises infrastructure into the cloud, leveraging cloud resources without sacrificing control or security.
  • DevOps and Application Development: ACI accelerates application development and deployment by automating network provisioning and configuration. Development teams can quickly deploy and test applications in a consistent, policy-driven environment, improving time-to-market and agility.
  • Enhanced Security Posture: Organizations with stringent security requirements can leverage ACI’s micro-segmentation and policy-based security to protect sensitive data and applications. This approach helps ensure compliance with industry regulations and reduces the risk of data breaches.

Challenges and Considerations

While Cisco ACI offers many benefits, organizations should be aware of potential challenges when deploying the solution:

  • Initial Learning Curve: Implementing ACI requires a shift from traditional network management practices to a more abstract, policy-driven approach. This change can present a learning curve for network administrators and engineers.
  • Integration with Existing Infrastructure: Integrating ACI with existing network infrastructure can be complex, especially with legacy systems. Organizations must carefully plan the transition to minimize disruption and ensure compatibility.
  • Cost Considerations: The initial investment in Cisco ACI, including hardware, software, and training costs, can be significant. However, the long-term benefits of automation, efficiency, and reduced operational costs can offset these initial expenses.

Conclusion

Cisco ACI represents a significant advancement in data center networking, offering a flexible, automated, and application-centric solution to modern networking challenges. ACI helps organizations build more responsive, secure, and scalable data centers by focusing on application requirements, automating network operations, and enhancing security. As businesses continue to evolve, Cisco ACI provides a robust foundation for future growth and innovation in network management.

In summary, Cisco ACI is a powerful tool for organizations looking to modernize their data center infrastructure and embrace the opportunities of the digital age.
